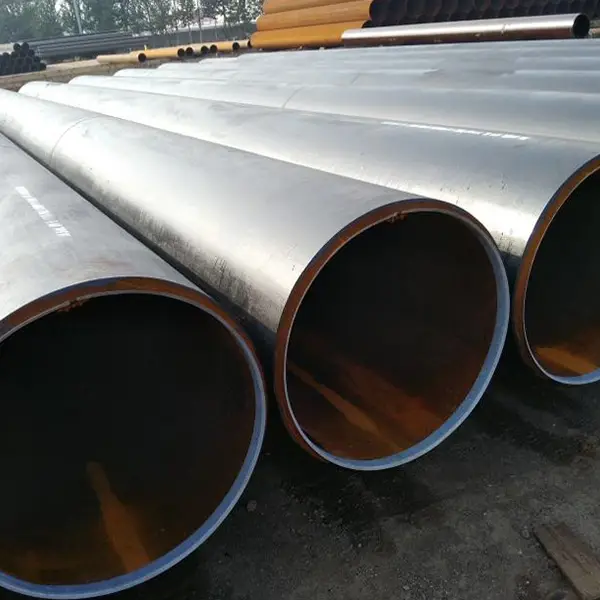

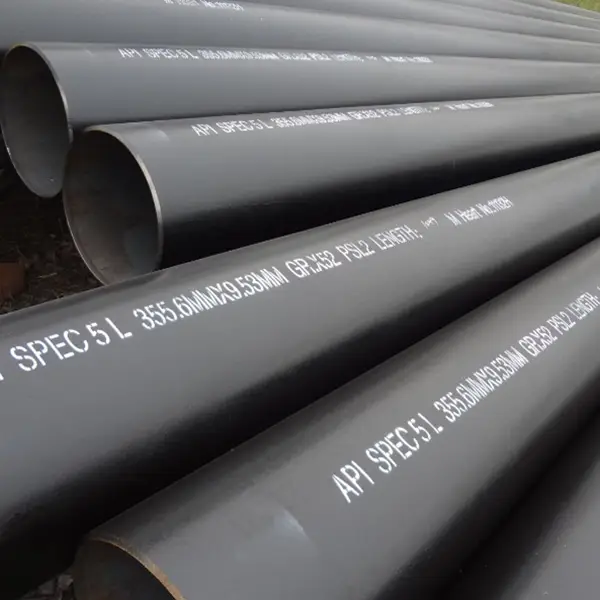

Tubería de acero API 5L X52

Tipo: Tubería de acero sin costura API 5L X52
Tamaño :
DE: 10-762 mm
PESO: 2-50 mm,
Longitud: 0.5mtr-12.2mtr

Estándar y grado: API 5L PSL1/PSL2 X52
Extremos: extremos cuadrados/extremos lisos (corte recto, corte de sierra, corte con soplete), extremos biselados/roscados
Recubrimiento: Recubrimiento 3PE; Recubrimiento 3PP; Recubrimiento FBE; Recubrimiento epoxi; Pintura especial
Embalaje: paquete o a granel, embalaje en condiciones de navegar o según los requisitos del cliente
Uso: Para transportar gas, agua y aceite en las industrias del petróleo o del gas natural
  • Descripción
  • Especificación
  • Estándar
  • Proceso
  • Embalaje

Mills produce two types of line pipe, seamless and welded

Seamless pipe is formed from a cylindrical bar of steel. The bar is heated to a high temperature and then a probe is inserted to create a hole through the cylinder. The cylinder is then transferred to rollers which size the cylinder to the specified diameter and wall thickness. A few mills can produce seamless pipe up to 24-in in diameter. For small diameter pipe, seamless pipe is common..

OD/mm

WT/mm

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

21.3


































26.7

































33.4

































48.3































60.3































73





























88.9




























114.3



























168.3























219.1





















273.1



















323.3












355.6










406.4







457.2







508







609.6








660.4








711.2









762









Chemical Composition(%) Tensile Strength(min)
Standard Grade C Mn P S Mpa Mpa
max max max max
API 5L
PSL1
GR.B 0.28 1.2 0.03 0.03 415 245
X42 0.28 1.3 0.03 0.03 415 290
X46 0.28 1.4 0.03 0.03 435 320
X52 0.28 1.4 0.03 0.03 460 360
X56 0.28 1.4 0.03 0.03 490 390
X60 0.28 1.4 0.03 0.03 520 415
X65 0.28 1.4 0.03 0.03 535 450
X70 0.28 1.4 0.03 0.03 570 485
Chemical Composition(%) Tensile Strength Yield Strength
Standard Grade C Mn P S Mpa Mpa
max max max max
API 5L
PSL2
GR.B 0.24 1.2 0.025 0.015 415-655 245-450
X42 0.24 1.3 0.025 0.015 415-655 290-495
X46 0.24 1.4 0.025 0.015 435-355 320-525
X52 0.24 1.4 0.025 0.015 460-760 360-530
X56 0.24 1.4 0.025 0.015 490-760 390-545
X60 0.24 1.4 0.025 0.015 520-760 415-565
X65 0.26 1.4 0.025 0.015 535-760 450-600
X70 0.24 1.4 0.025 0.015 570-760 485-635
X80 0.24 1.4 0.025 0.015 625-825 555-705

Hot rolled manufacturing process:

Round Pipe Billet → Heating → Punching → Three-Roller Skew Rolling → Annealing →Acid Pickling→Coating Oil (Copper Plating) → Multi-pass Cold Drawing or ColdRolling → Pipe Billet → Heat Treatment → Straightening → Hydrostatic Test or Inspection → Marking → Warehousing



Cold drawn manufacturing process:

Round Pipe Billet → Heating → Punching → Pipe Head Treatment → Annealing →Acid Pickling →

Coating Oil (Copper Plating) → Multi-pass Cold Drawing or Cold Rolling → Pipe Billet → Heat Treatment → Straightening → Hydrostatic Test or Inspection → Marking → Warehousing

Package of carbon steel seamless pipe

Plastic caps plugged at the two sides of pipe ends

Should be avoided by the steel strapping and transport damage

Bundled signs should be uniform and consistent

The same bundle(batch) of steel pipe should be came from the same furnace.

The steel pipe has the same furnace number, the same steel grade, the same specifications.
